Precision Welding Solutions for Lithium Ion Batteries
Advanced manufacturing processes ensuring reliability, safety, and performance in every lithium ion vehicle battery production cycle.
The Critical Role of Welding in Lithium Ion Battery Production
In the rapidly evolving landscape of energy storage, the manufacturing processes behind lithium ion batteries demand unprecedented precision and reliability. This is particularly true for the lithium ion vehicle battery sector, where safety, performance, and longevity are paramount concerns for manufacturers and consumers alike.
Welding represents one of the most critical stages in battery production, directly impacting cell performance, thermal management, and overall battery safety. As energy densities increase and battery sizes vary for different applications, the need for specialized welding techniques has become increasingly important.
This comprehensive guide explores the three foundational welding processes that define modern lithium ion battery manufacturing: ultrasonic spot welding, resistance spot welding, and plastic heat sealing. Each process offers unique advantages and applications within the production cycle, ensuring that lithium ion vehicle battery packs meet the rigorous demands of today's energy markets.
Why Welding Precision Matters
Each welding process directly affects the internal resistance, thermal conductivity, and mechanical stability of battery cells and packs. In lithium ion vehicle battery applications, even minor inconsistencies can lead to performance degradation, safety risks, or premature failure.

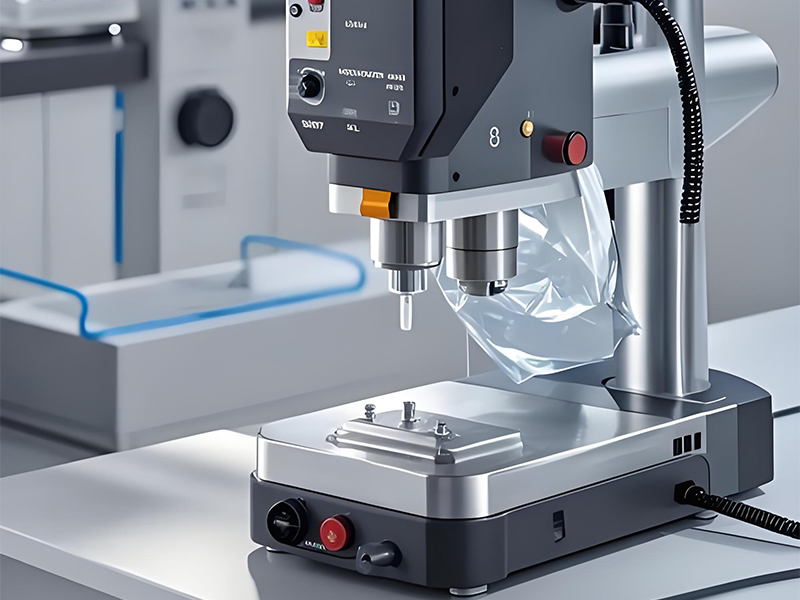

Ultrasonic Spot Welding
Ultrasonic spot welding has become the gold standard for connecting tab materials in lithium ion battery cells, particularly in the lithium ion vehicle battery sector. This process uses high-frequency mechanical vibrations to create solid-state bonds between metals without melting, offering significant advantages over traditional fusion welding methods.
The technology works by clamping the workpieces between a fixed anvil and a vibrating horn. When activated, the horn delivers ultrasonic vibrations (typically 15-70 kHz) that generate frictional heat at the interface of the materials being joined. This heat, combined with clamping force, causes plastic deformation and diffusion bonding, creating a strong, reliable joint.
Key Technical Parameters
- Vibration amplitude: 10-50 μm, depending on material thickness and type
- Clamping force: 5-50 N for small tabs, up to 200 N for larger busbars
- Welding time: 10-200 ms, with precise control for different material combinations
- Power requirements: 500-3000 W for most lithium ion vehicle battery applications
Low Heat Input
Minimizes thermal damage to sensitive battery components, critical for lithium ion vehicle battery performance.
Rapid Cycle Time
Enables high-volume production with cycle times as low as 100ms per weld, ideal for lithium ion vehicle battery mass production.
Materials and Applications in Battery Manufacturing
Ultrasonic spot welding excels at joining dissimilar materials commonly found in lithium ion batteries, including copper, aluminum, and their alloys. This versatility makes it particularly valuable in lithium ion vehicle battery production, where different materials are used for current collectors and terminals.
| Material Combination | Typical Applications | Weld Strength |
|---|---|---|
| Copper to Copper | Tab connections, busbars | High (15-30 N) |
| Aluminum to Aluminum | Pouch cell terminals | Medium-High (10-25 N) |
| Copper to Aluminum | Interconnects in modules | Medium (8-20 N) |
| Nickel-plated to Copper | Lithium ion vehicle battery terminals | High (12-28 N) |
In lithium ion vehicle battery production, ultrasonic welding is primarily used for:
- Connecting electrode tabs to current collectors in both cylindrical and prismatic cells
- Assembling battery modules by joining cells in series and parallel configurations
- Attaching busbars to electrode terminals in high-power lithium ion vehicle battery packs
- Sealing certain types of battery casings without thermal damage to internal components
Quality Considerations
For lithium ion vehicle battery applications, ultrasonic weld quality is verified through a combination of destructive and non-destructive testing methods. These include peel tests, cross-sectional analysis, and ultrasonic imaging to ensure consistent bond formation without cracks or cold welds that could compromise battery performance or safety.
Resistance Spot Welding
Resistance spot welding is a well-established technology in lithium ion battery manufacturing, offering reliable and cost-effective joining for specific applications within the production process. This method creates welds by passing an electric current through the resistance of the contact point between two or more workpieces, generating heat that melts the material and forms a weld nugget upon cooling.
In lithium ion vehicle battery production, resistance welding is valued for its ability to create strong, low-resistance connections between thicker materials. The process is highly controllable, with parameters adjusted based on material type, thickness, and desired weld strength – critical factors for ensuring consistent performance in lithium ion vehicle battery packs.
Process Characteristics
Current Profiles
Single pulse, multi-pulse, and ramped current options to prevent material expulsion and control heat input in lithium ion vehicle battery components.
Electrode Design
Custom electrode shapes (dome, flat, pointed) optimized for different battery components and material combinations.
Force Control
Precise pressure application (5-500 N) to ensure proper contact resistance and weld formation consistency.
Weld Monitoring
Real-time resistance monitoring and quality assessment for 100% inspection in critical lithium ion vehicle battery applications.
Resistance Welding Parameters for Common Battery Materials
Applications in Lithium Ion Battery Production
While resistance spot welding is not suitable for all lithium ion battery components due to its higher heat input compared to ultrasonic methods, it plays a crucial role in specific manufacturing stages, particularly for lithium ion vehicle battery production where certain connections require higher mechanical strength.
Battery Module Assembly
Resistance welding is widely used to connect cells in modules, especially for cylindrical cell configurations in lithium ion vehicle battery packs. The process efficiently joins cell terminals to busbars, creating the necessary series and parallel connections while maintaining low electrical resistance.
Enclosure Fabrication
For metal battery enclosures, resistance spot welding provides strong, reliable joints that maintain the structural integrity of the lithium ion vehicle battery pack while allowing for efficient heat dissipation.
Terminal Connections
High-current terminal connections in lithium ion vehicle battery packs often utilize resistance welding to ensure low contact resistance and high mechanical strength, critical factors for safety and performance during high-rate charging and discharging.
Structural Components
Internal support structures within battery packs are frequently assembled using resistance spot welding, providing the mechanical stability required for lithium ion vehicle battery applications where vibration and shock resistance are essential.
Advantages in Battery Manufacturing
- High mechanical strength welds suitable for structural components
- Low electrical resistance connections for efficient current flow
- Cost-effective for high-volume lithium ion vehicle battery production
- Well-suited for thicker materials and multiple layers
Considerations and Limitations
- Higher heat input can damage sensitive components
- Potential for electrode wear requiring regular maintenance
- Less suitable for very thin materials common in some cells
- May require surface preparation for optimal results
Plastic Heat Sealing
Plastic heat sealing is a critical process in the final stages of lithium ion battery packaging, particularly for pouch and prismatic cell designs commonly used in lithium ion vehicle battery applications. This technique creates hermetic seals around battery cells, protecting internal components from moisture, contaminants, and mechanical damage while maintaining structural integrity.
The process works by applying controlled heat and pressure to thermoplastic materials, causing them to melt at the sealing interface and form a permanent bond as they cool. For lithium ion batteries, this process must be extremely precise to ensure complete hermeticity without damaging the sensitive internal components or creating pathways for electrolyte leakage.
Sealing Technologies for Battery Applications
Hot Bar Sealing
Uses heated metal bars to apply consistent temperature and pressure, ideal for creating strong perimeter seals on lithium ion vehicle battery pouches. Typical temperatures range from 180-250°C with dwell times of 0.5-3 seconds.
Impulse Sealing
Applies heat through a resistive element in controlled pulses, reducing heat exposure time. Particularly useful for heat-sensitive lithium ion battery materials where minimal thermal exposure is critical.
Ultrasonic Sealing
Uses ultrasonic vibrations to generate heat at the seal interface, offering precise control with minimal heat transfer to surrounding components – highly valued for sensitive lithium ion vehicle battery applications.
Material Compatibility for Battery Sealing
| Plastic Material | Sealing Temperature Range | Battery Application | Moisture Barrier |
|---|---|---|---|
| PP (Polypropylene) | 160-190°C | Pouch cell edges | Good |
| PE (Polyethylene) | 120-160°C | Insulation layers | Excellent |
| PET (Polyester) | 230-260°C | Outer packaging | Excellent |
| Aluminum Composite | 180-230°C | Lithium ion vehicle battery pouches | Superior |
Quality Control in Heat Sealing for Lithium Ion Batteries
For lithium ion vehicle battery applications, the quality of the heat seal directly impacts battery performance, safety, and longevity. Even minor defects can lead to electrolyte leakage, moisture ingress, or increased internal resistance – all critical issues in lithium ion vehicle battery reliability.
Seal Integrity Testing
100% inspection using visual, pressure decay, and helium leak detection methods to ensure hermetic seals in lithium ion vehicle battery production.
Seal Strength Testing
Peel and burst testing to verify seal strength consistency, ensuring lithium ion vehicle battery packs can withstand operational stresses and environmental conditions.
Process Monitoring
Real-time monitoring of temperature, pressure, and dwell time parameters to maintain process control in high-volume lithium ion vehicle battery manufacturing.
Advanced Sealing Considerations for Lithium Ion Vehicle Battery Production
The unique demands of lithium ion vehicle battery applications have driven innovations in plastic heat sealing technology. These batteries must withstand extreme temperature variations, vibration, mechanical stress, and potential impact while maintaining their hermetic seal throughout their service life, which can exceed 10 years in automotive applications.
Key Innovations in Battery Heat Sealing
-
Controlled Heat Profiles
Multi-zone heating systems with precise temperature control to accommodate varying material thicknesses in complex lithium ion vehicle battery designs.
-
Non-Contact Temperature Measurement
Infrared temperature monitoring to ensure consistent heat application without physical contact, critical for delicate lithium ion vehicle battery components.
-
Adaptive Process Control
AI-driven systems that adjust sealing parameters in real-time based on material variations, ensuring consistent quality in lithium ion vehicle battery production.
-
3D Sealing Surfaces
Custom tooling for complex, non-planar sealing surfaces required in advanced lithium ion vehicle battery designs and packaging configurations.
As lithium ion vehicle battery technology continues to evolve, with higher energy densities and more complex form factors, plastic heat sealing processes will remain critical to ensuring these advanced energy storage systems meet the performance, safety, and durability requirements of modern applications.
Welding Processes in Lithium Ion Vehicle Battery Applications
Each welding technology plays a critical role in different stages of lithium ion battery production, from cell manufacturing to final pack assembly
Electric Vehicle Batteries
All three welding processes are utilized in lithium ion vehicle battery production, with ultrasonic welding for cell tabs, resistance welding for module assembly, and heat sealing for pouch cell enclosures.
Energy Storage Systems
Large-format lithium ion vehicle battery derivatives for stationary storage rely heavily on resistance welding for robust module connections and heat sealing for durable enclosures in varied environments.
Portable Electronics
Compact lithium ion batteries utilize precise ultrasonic welding for delicate internal connections and advanced heat sealing for thin, lightweight, yet durable battery enclosures.
Advanced Welding for the Future of Energy Storage
As the demand for high-performance lithium ion batteries continues to grow, particularly in the lithium ion vehicle battery sector, the importance of precision welding processes will only increase. Each technology – ultrasonic spot welding, resistance spot welding, and plastic heat sealing – offers unique advantages that contribute to the overall performance, safety, and reliability of modern battery systems.
By leveraging the strengths of each process in the appropriate application, manufacturers can produce lithium ion vehicle battery solutions that meet the ever-increasing demands for energy density, charging speed, cycle life, and safety, driving the transition to a more sustainable energy future.
