The Evolution of Lithium Ion Battery Technology
From groundbreaking invention to powering our modern world – exploring the development, unique properties, and diverse applications of the revolutionary lithium ion battery.
Revolutionizing Energy Storage
The lithium ion battery has emerged as one of the most significant technological advancements of the 21st century, fundamentally transforming how we store and use energy. Its development represents a culmination of decades of research and innovation in materials science and electrochemistry.
Unlike traditional battery technologies, the lithium ion battery offers high energy density, long cycle life, and the ability to recharge efficiently – characteristics that have made it indispensable in our increasingly mobile and renewable energy-dependent world.
This comprehensive overview explores the fascinating journey of lithium ion battery development, examines its unique characteristics, and highlights its diverse applications across numerous industries.
Energy Density
2-3x Higher
Lithium Ion Battery Development History
The journey of the lithium ion battery spans decades of scientific exploration, breakthrough discoveries, and engineering innovations that have shaped modern energy storage.
Pioneering Work Begins
The foundational research on lithium ion battery market technology began in the 1970s. In 1972, M. Stanley Whittingham, working at Exxon, developed the first rechargeable battery using lithium metal and titanium sulfide.
This early design demonstrated high energy density but suffered from safety issues due to the reactive nature of lithium metal, which made the batteries prone to catching fire if damaged.
Early laboratory research on lithium-based battery technologies

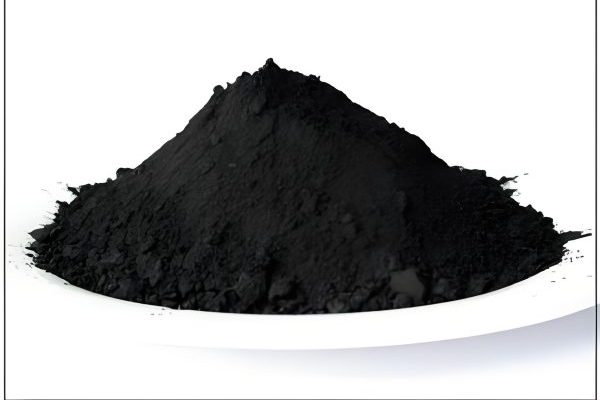

Graphite electrode structure revolutionized battery safety
Safer Alternatives Developed
In 1980, John B. Goodenough replaced the titanium sulfide with cobalt oxide, creating a cathode that could operate at higher voltages, significantly increasing energy density. This breakthrough paved the way for more practical lithium ion battery designs.
Akira Yoshino further improved the design in 1985 by using petroleum coke (a carbon material) for the anode instead of reactive lithium metal, eliminating the safety risks while maintaining good performance.
First Commercial Lithium Ion Battery
Sony Corporation successfully commercialized the first lithium ion battery in 1991, initially for use in video cameras. This marked the beginning of the lithium ion battery's journey into consumer electronics.
The 1990s saw rapid improvements in lithium ion battery technology, with increased energy density, improved safety, and reduced production costs. By the end of the decade, these batteries were commonly used in mobile phones, laptops, and other portable devices.
Sony's first commercial product using lithium ion battery technology
Laptops became thinner and more powerful with lithium ion batteries
Dominance in Portable Devices
The 2000s witnessed the lithium ion battery becoming the standard power source for portable electronics. As smartphones, tablets, and laptops gained popularity, demand for more efficient, longer-lasting batteries surged.
During this period, researchers developed new cathode materials like nickel-cobalt-aluminum (NCA) and nickel-manganese-cobalt (NMC), further improving the energy density and cycle life of lithium ion battery technology.
Electric Vehicles Take Center Stage
The 2010s marked the lithium ion battery's expansion beyond consumer electronics into the automotive industry. Companies like Tesla demonstrated that lithium ion battery packs could power electric vehicles (EVs) with sufficient range and performance.
This decade saw significant reductions in lithium ion battery costs (over 80% reduction from 2010 to 2019) and improvements in energy density, making EVs increasingly competitive with traditional internal combustion vehicles.

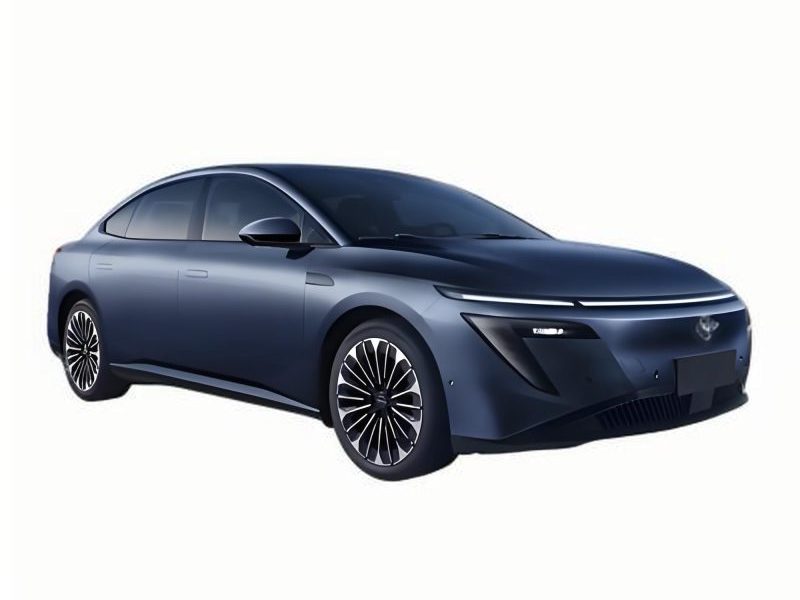

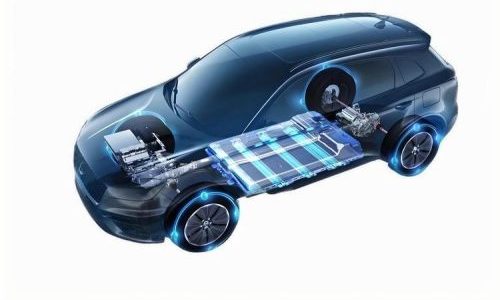

Electric vehicles became viable thanks to advances in lithium ion battery technology

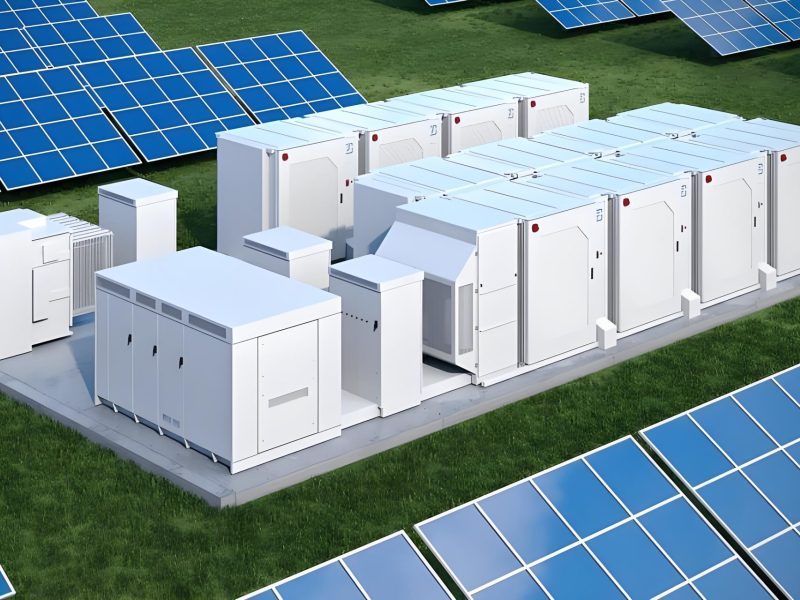

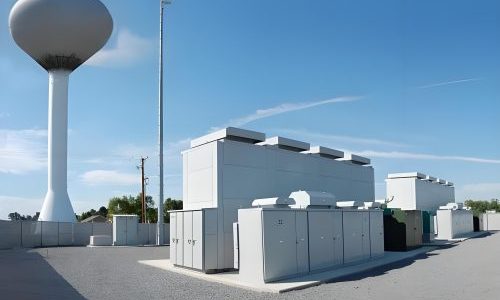

Lithium ion batteries enabling renewable energy integration through energy storage
Grid Storage and Beyond
The current decade is seeing the lithium ion battery play an increasingly vital role in renewable energy systems, providing energy storage solutions for solar and wind power. Large-scale lithium ion battery installations are helping stabilize electrical grids worldwide.
Research continues to focus on improving lithium ion battery technology, with developments in solid-state batteries, improved thermal management, and more sustainable manufacturing processes. These advancements promise to further expand the capabilities and applications of lithium ion battery systems.
Nobel Prize in Chemistry
2019
Recognition for Lithium Ion Battery Pioneers
In 2019, the Nobel Prize in Chemistry was awarded to John B. Goodenough, M. Stanley Whittingham, and Akira Yoshino "for the development of lithium ion battery." This prestigious recognition highlighted the transformative impact of their work on modern society, enabling the wireless revolution and paving the way for a fossil fuel-free future.
Lithium Ion Battery Characteristics
The lithium ion battery offers a unique combination of properties that have made it the preferred choice for numerous applications across various industries.
Battery Technology Comparison
High Energy Density
One of the most significant advantages of the lithium ion battery is its high energy density, typically ranging from 100-265 Wh/kg. This means it can store more energy in a smaller, lighter package compared to other rechargeable battery technologies like nickel-cadmium (NiCd) or lead-acid batteries.
Rechargeable with No Memory Effect
Unlike some other battery types, the lithium ion battery does not suffer from the memory effect, which is the tendency of a battery to hold less charge if it's repeatedly recharged before being fully discharged. This makes lithium ion battery systems more convenient for everyday use.
Low Self-Discharge Rate
The lithium ion battery has a relatively low self-discharge rate, losing only about 5-10% of its charge per month when not in use. This is significantly better than nickel-based batteries, which can lose 10-15% of their charge in the first 24 hours and an additional 10% per month.
High Open-Circuit Voltage
A typical lithium ion battery cell has an open-circuit voltage of 3.6-3.7 volts, significantly higher than the 1.2 volts of nickel-cadmium or nickel-metal hydride cells. This higher voltage means fewer cells are needed to achieve a specific voltage requirement, simplifying battery pack design.
Long Cycle Life
Modern lithium ion battery systems can typically withstand 500-1000 charge-discharge cycles before their capacity drops to 80% of the original. Advanced designs and proper maintenance can extend this cycle life even further, making the lithium ion battery a cost-effective solution over time.
Design Flexibility

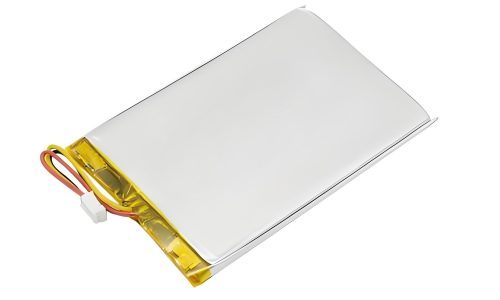

The lithium ion battery offers significant design flexibility, available in various form factors including cylindrical, prismatic, and pouch cells. This versatility allows engineers to optimize battery packs for specific applications, balancing factors like space constraints, weight, and thermal management.
Considerations and Limitations
While the lithium ion battery offers numerous advantages, it also has certain limitations that users and designers must consider:
- Sensitivity to high temperatures, which can degrade performance and potentially cause safety issues
- Requirement for protection circuits to prevent overcharging and deep discharge
- Higher initial cost compared to some traditional battery technologies
- Performance degradation over time, even when not in use
- Transportation restrictions due to safety concerns
- Limited availability of raw materials like lithium, cobalt, and nickel
Ongoing research aims to address these limitations, with advancements in battery chemistry, thermal management, and recycling processes helping to improve the safety, performance, and sustainability of lithium ion battery technology.
Types of Lithium Ion Battery
There are several variations of lithium ion battery technology, each with unique characteristics optimized for specific applications.
Lithium Cobalt Oxide (LiCoO₂)
LCOThe first commercially successful lithium ion battery chemistry, LiCoO₂ offers high energy density but has lower thermal stability and limited cycle life.
Lithium Manganese Oxide (LiMn₂O₄)
LMOThis lithium ion battery type offers improved safety and thermal stability compared to LCO, with good rate capability but lower energy density and shorter cycle life.
Lithium Nickel Manganese Cobalt Oxide
NMCA popular lithium ion battery variant offering a balance of high energy density, good cycle life, and thermal stability through its nickel, manganese, and cobalt blend.
Lithium Iron Phosphate (LiFePO₄)
LFPThis lithium ion battery chemistry prioritizes safety, thermal stability, and long cycle life, with moderate energy density and excellent rate capability.
Lithium Ion Battery Applications
The versatility and performance characteristics of the lithium ion battery have led to its adoption across a wide range of applications, from small consumer devices to large-scale energy systems.
Consumer Electronics
The largest and earliest application area
Powering Our Daily Devices
The lithium ion battery revolutionized consumer electronics by enabling the development of smaller, lighter, and more powerful devices. Its high energy density and rechargeable nature made possible the smartphones, laptops, tablets, and wearable technology that have become essential to modern life.
Smartphones
Laptops
Portable Audio
Gaming Devices
In consumer electronics, the lithium ion battery offers the ideal combination of compact size, light weight, and sufficient runtime between charges. Continuous improvements in lithium ion battery technology have enabled thinner devices with larger screens and more powerful processors without compromising on battery life.
Electric Vehicles
Driving the transportation revolution
Revolutionizing Transportation
The lithium ion battery has been instrumental in the growth of electric vehicles (EVs), providing the energy storage solution needed to replace internal combustion engines. As lithium ion battery costs have fallen and energy density has increased, EVs have become increasingly competitive with traditional vehicles.
Passenger Cars
Buses & Trucks
Two-Wheelers
Commercial Fleets
Modern EVs typically use large lithium ion battery packs with capacities ranging from 40 kWh to over 100 kWh, providing driving ranges of 200-400+ miles on a single charge. Ongoing advancements in lithium ion battery technology continue to extend range, reduce charging times, and improve safety, accelerating the adoption of electric transportation.
Energy Storage
Enabling renewable energy integration
Storing the Power of Tomorrow
The lithium ion battery has emerged as a key technology for energy storage systems (ESS), addressing the intermittent nature of renewable energy sources like solar and wind. These systems store excess energy generated during peak production periods for use when generation is low or demand is high.
Residential Storage
Commercial Systems
Utility-Scale
Grid Stabilization
Large-scale lithium ion battery installations, like Tesla's Megapack and Powerwall systems, are becoming increasingly common, providing grid operators with flexible, rapid-response energy storage. These lithium ion battery systems help improve grid reliability, reduce reliance on fossil fuel peaker plants, and facilitate the integration of more renewable energy into the electrical system.
Other Key Applications
Medical Devices
The lithium ion battery powers a wide range of medical devices, including portable defibrillators, insulin pumps, hearing aids, and medical monitors. Its reliability, long runtime, and compact size make it ideal for these critical applications where consistent power is essential.
Aerospace & Defense
In aerospace and defense applications, the lithium ion battery provides lightweight, high-energy power sources for unmanned aerial vehicles (UAVs), satellites, portable communication equipment, and soldier-worn systems where weight and reliability are critical factors.
Cordless Power Tools
The lithium ion battery transformed the power tool industry by enabling cordless operation without sacrificing performance. Today, most professional-grade power tools use lithium ion battery technology, providing the high current needed for demanding applications while remaining lightweight and portable.
Future of Lithium Ion Battery Technology
Ongoing research and development continue to push the boundaries of lithium ion battery performance, safety, and sustainability.
Next-Generation Innovations
Solid-State Batteries
Solid-state lithium ion battery technology replaces the liquid electrolyte with a solid material, promising higher energy density, faster charging, and improved safety. These batteries could potentially double the energy density of current technologies while eliminating fire risks associated with liquid electrolytes.lithium ion car battery.
Sustainable Materials & Recycling
Research is focused on developing lithium ion battery chemistries that reduce or eliminate rare and expensive materials like cobalt.同时, advanced recycling techniques are being developed to recover valuable materials from spent lithium ion battery cells, creating a circular economy for battery materials.
Fast-Charging Technologies
New electrode materials and cell designs are enabling lithium ion battery systems that can charge to 80% capacity in 15 minutes or less. These fast-charging capabilities address one of the primary consumer concerns with electric vehicles and portable devices.
Projected Growth
20% CAGR Through 2030
The global lithium ion battery market is expected to grow significantly, driven by demand from electric vehicles and energy storage applications.
Transforming Industries and Society
The continued evolution of lithium ion battery technology will have profound impacts on multiple industries and contribute to addressing global challenges like climate change and energy security.
Carbon Reduction
Enabling widespread adoption of electric vehicles and renewable energy to reduce greenhouse gas emissions
Energy Access
Providing reliable power to remote communities through lithium ion battery storage systems
Technological Innovation
Powering next-generation devices and systems in robotics, IoT, and smart infrastructure
Sustainable Materials
Driving development of ethical sourcing and recycling for lithium ion battery components
Powering a Sustainable Future with Lithium Ion Battery Technology
From its humble beginnings to its current role as a cornerstone of the energy transition, the lithium ion battery continues to evolve, enabling innovations that once seemed impossible.
